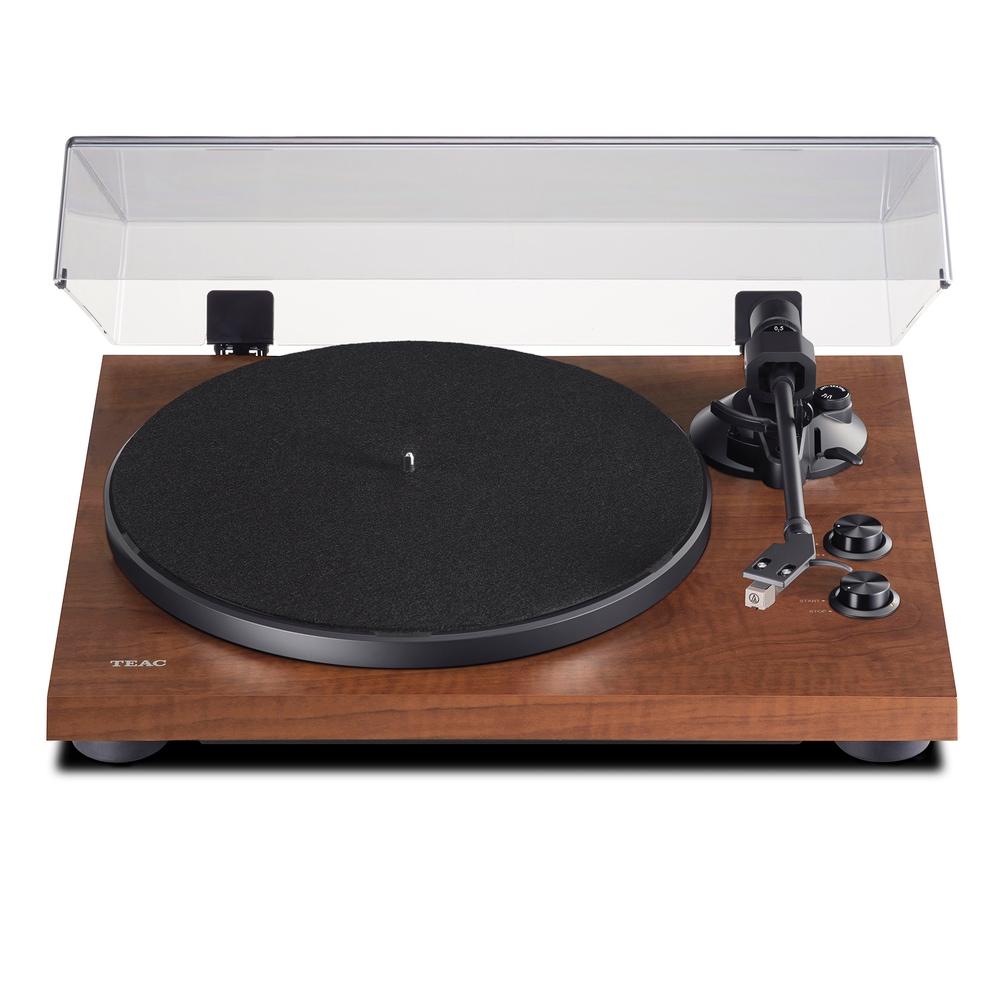

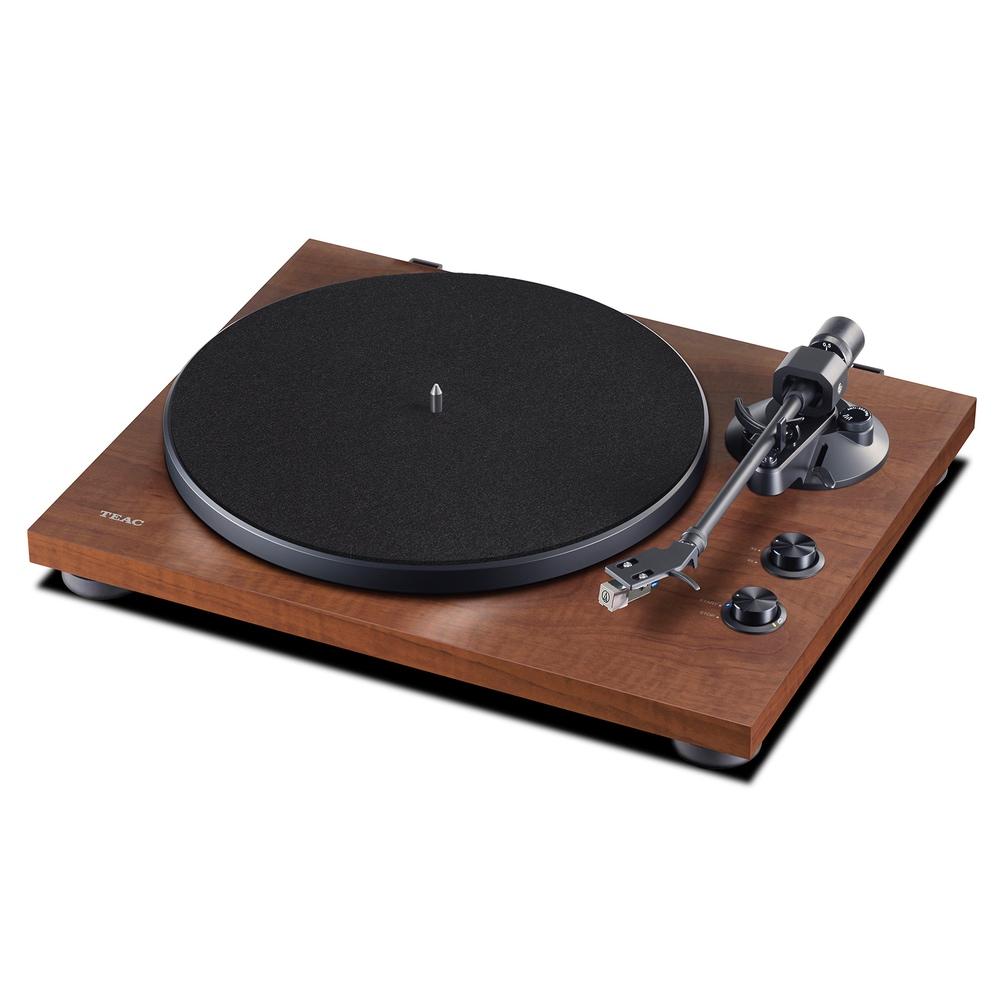

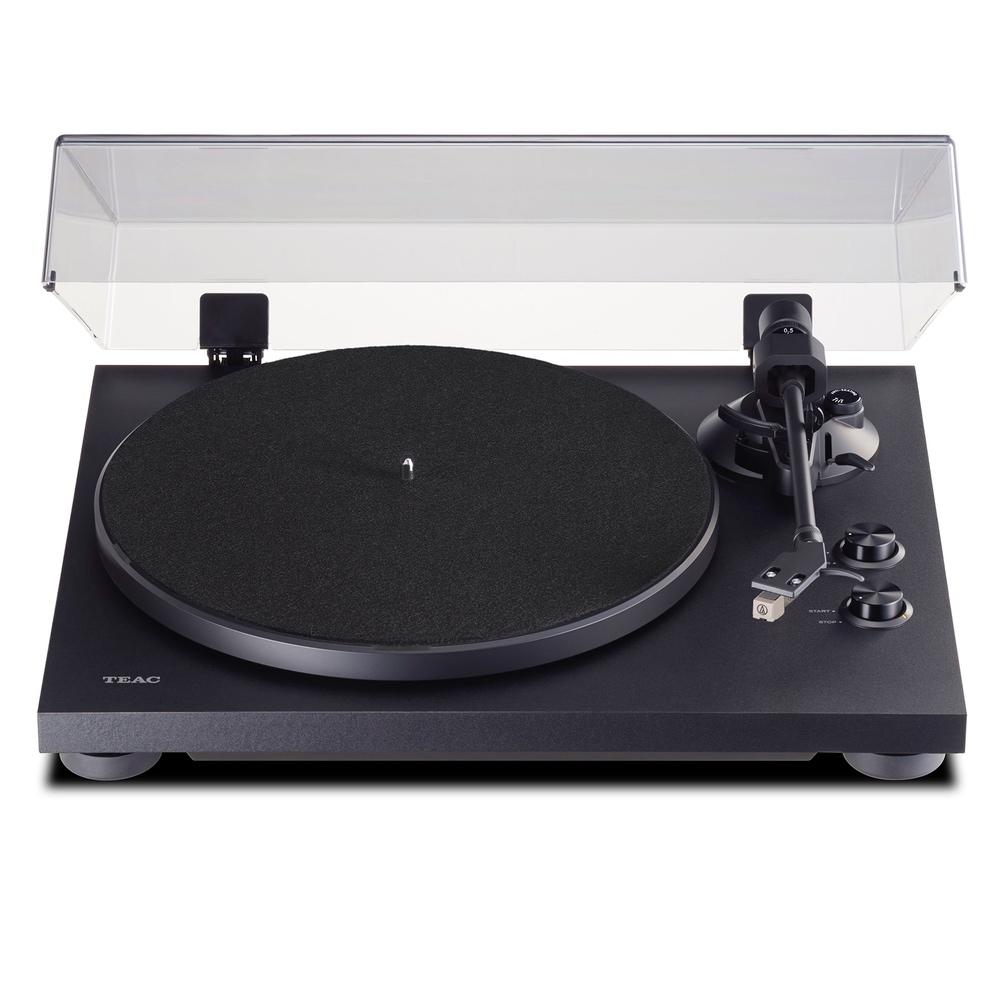

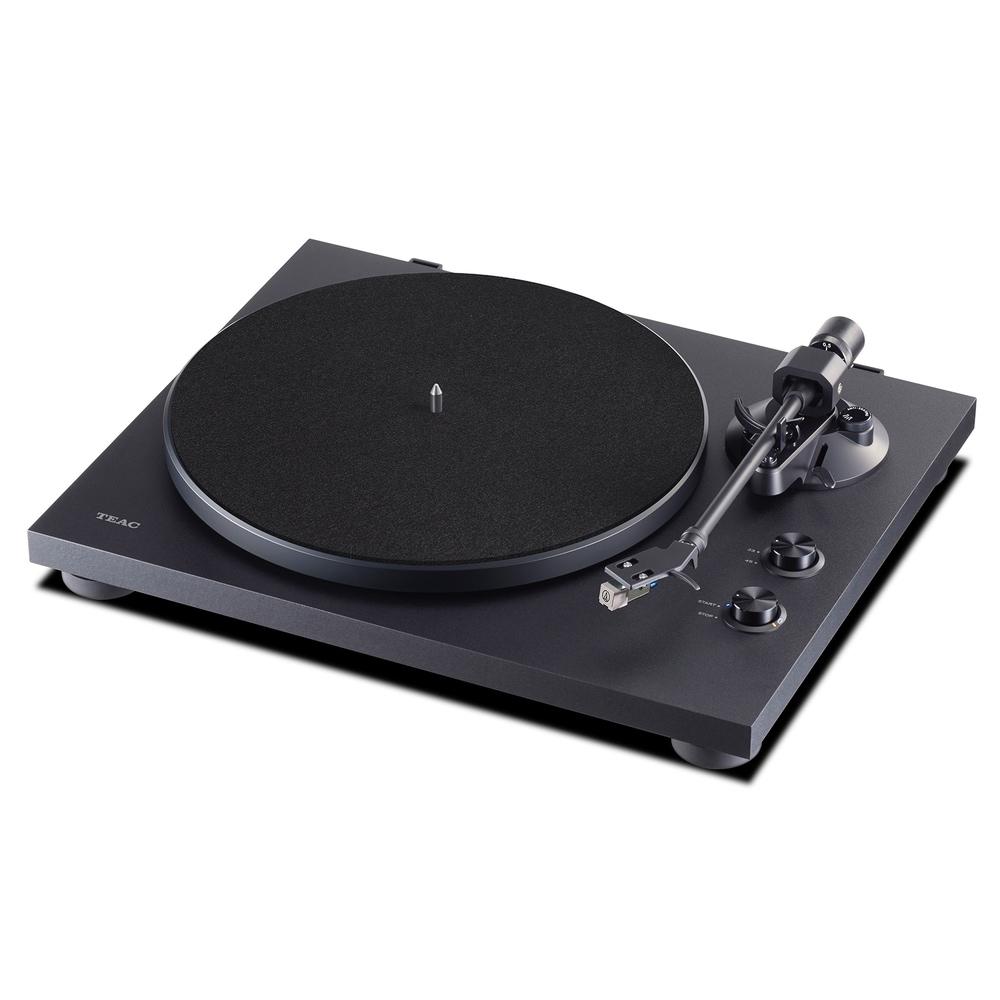

TEAC TN-280BT-A3 Bluetooth Turntable

A wireless turntable for new way of enjoying vinyl records

The TN-280BT is not only a great-sounding turntable for music enthusiastic who wants to enjoy vinyl record from closet or re-issues. It brings you a totally new way of listening to vinyl records with its Bluetooth capability. No extra cost for hi-fi components or complicated wiring is required. Only Bluetooth speakers or headphones you might have for iPhones are required to enjoy the world of vinyl records

The TN-280BT also accommodates a built-in Phono EQ amplifier that provides Line output, and allows you to connect to almost any sound system regardless type of inputs.

The belt-drive motor on the TN-280BT reduces vibration for sweeter, more accurate sound than direct-drive turntables for DJ, while an aluminium die-cast platter and anti-skating system provide a solid foundation for great-sounding playback. The high-performance, upgradable MM cartridge captures every detail on your record, and the static-balanced straight tone-arm ensures clear sound. It’s all housed in a handsome case in black or walnut veneer.

For music enthusiasts who want to hear every sensuous note of their vinyl collection.

• 2-speed Belt-drive turntable
• Built-in Bluetooth transmitter
• Built-in MM phono equaliser and Phono, Line, and Bluetooth outputs
• High-performance MM cartridge included (Made in Japan)
• Aluminium die-cast platter
• Anti-skating mechanism
• High-density MDF cabinet for better vibration and resonance

What You Get

• 1 x Rubber Sheet
• 1 x EP Adapter
• 1 x Counter Weight
• 1 x Head-shell (MM-type Cartridge audio-technica AT3600L installed)
• 1 x Turntable (Platter)
• 1 x Dust Cover
• 1 x Rubber Feet for Dust Cover x2
• 1 x Hinge x2
• 1 x RCA Audio Cable
• 1 x AC Adapter (GPE053A-120050-Z)

Specifications

TURNTABLE SECTION

• MOTOR: DC Motor
• SPEED: 33 ⅓ RPM, 45 RPM
• WOW AND FLUTTER: 0.2%
• SIGNAL TO NOISE RATIO: 67dB or higher (A-weighted, 20kHz LPF), 60db (unweighted, 20kHz, LPF)
• PLATTER: Aluminium Die-Cast
• DIAMETER OF PLATTER: 12", 300mm

TONEARM SECTION

• TYPE: Static Balance, Straight
• EFFECTIVE ARM LENGTH: 8.8", 223mm
• STYLUS PRESSURE RANGE: 0 to 5g
• COMPATIBLE CARTRIDGE RANGE: 3.5 to 6.5g
• ANTI-SKATING ADJUSTMENT: Supported

CARTRIDGE SECTION

• TYPE: WM-type
• STYLUS SHAPE: Conical
• FREQUENCY RESPONSE: 20Hz to 20kHz
• CHANNEL SEPARATION: 24dB at 1kHz, 15dB at 10kHz
• CHANNEL BALANCE: 1.5dB
• TRACKING FORCE: 3.5g±0.5 g
• OUTPUT IMPEDANCE: 47k ohms
• OUTPUT VOLTAGE: 3.5mV
• CARTRIDGE WEIGHT: 0.005kg±0.0003kg
• HEAD-SHELL WEIGHT: 0.01kg (including nuts, screws and wires)
• STYLUS REPLACEMENT: Audio-Technica ATM3600L

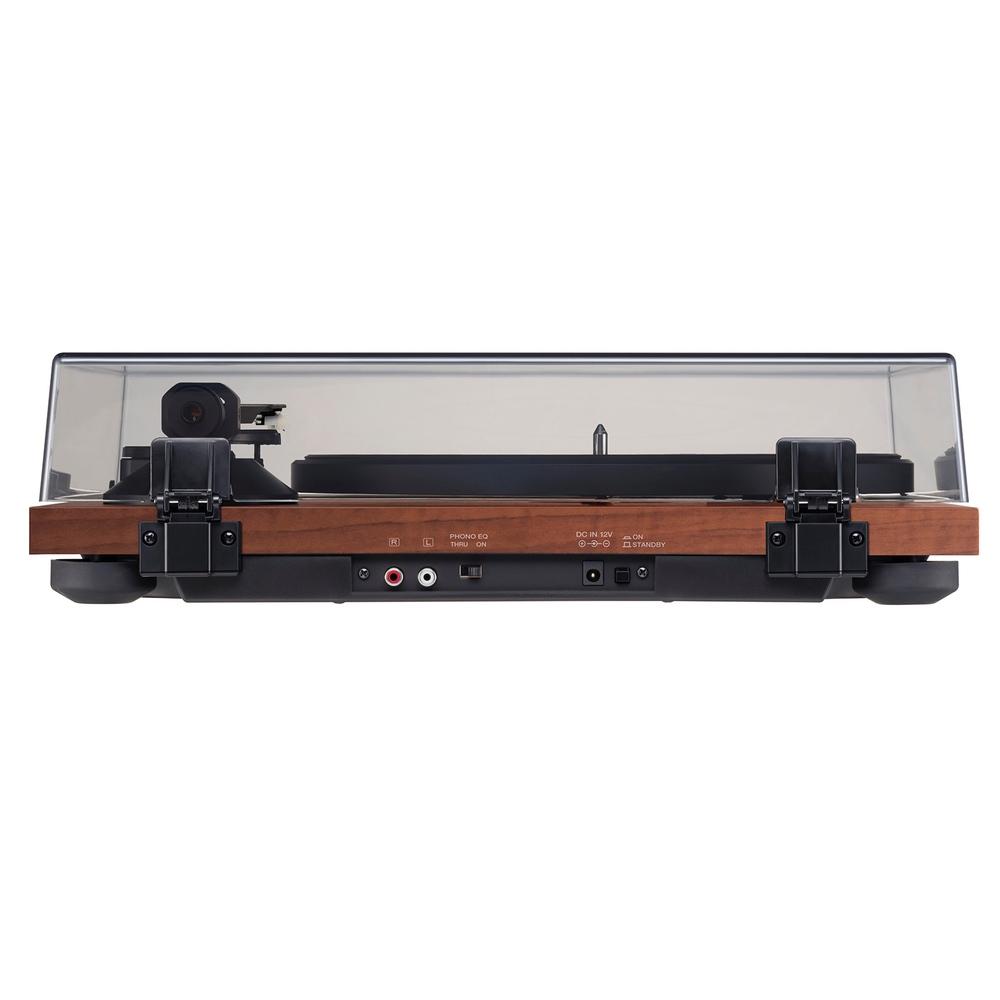

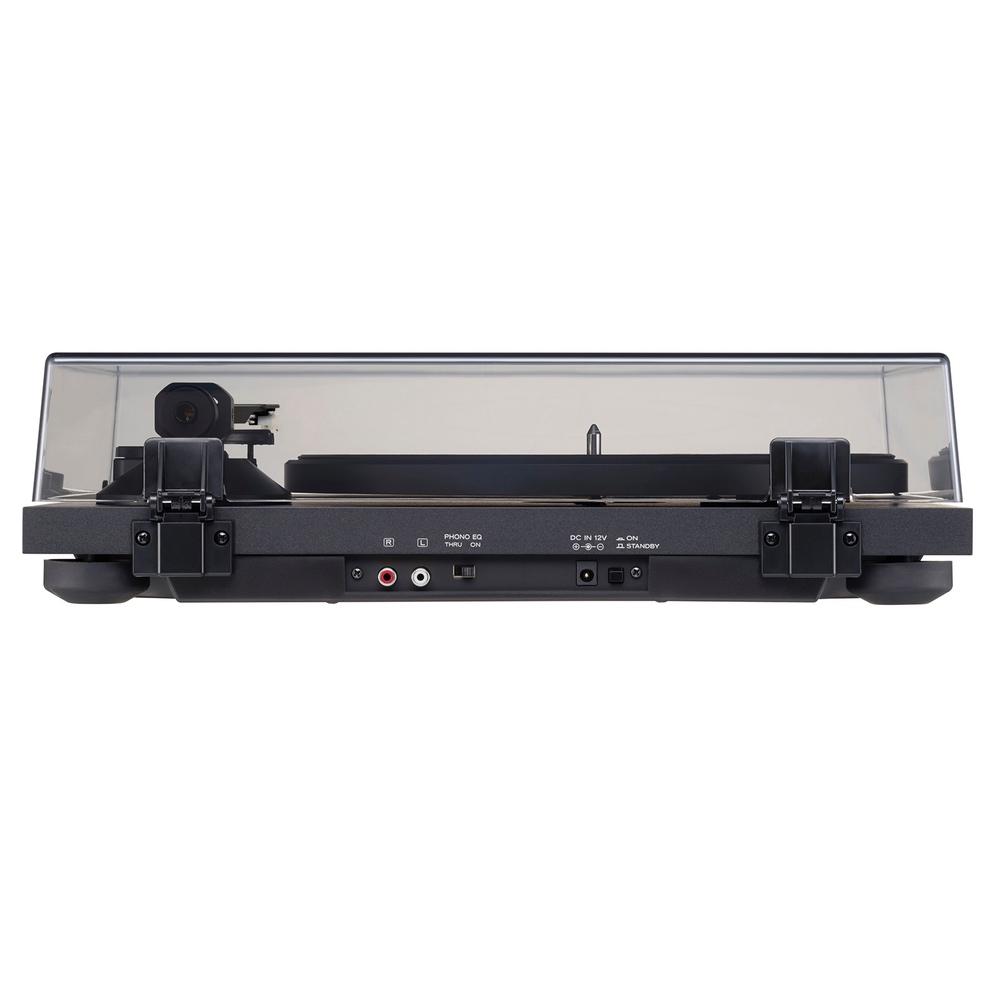

ANALOG OUTPUT SECTION

• CONNECTORS: RCA Pin x 1 Pair (Chrome-Plated)
• OUTPUT VOLTAGE: PHONO -4.2mV, LINE - 120mV (-13dBV)

BLUETOOTH SECTION

• RANGE: Approx 30ft / 10 Metres
• SUPPORTED CODEC: SBC

GENERAL

• POWER: AC 100 to 240V, 50/60Hz
• POWER CONSUMPTION: <1.5W (<0.5W at Standby)
• OVERAL DIMENSIONS: 420mm x 117mm 356 mm
• WEIGHT: Approx 4.8988kg, 4.9kg
• Warranty: 2 Years
