Ruark RS1 Subwoofer

The Ruark Audio RS1 Subwoofer is a compact, high-performance bass unit designed to enhance compatible Ruark music systems with deeper, more controlled low frequencies.

Styled to match Ruark’s premium finishes, it blends seamlessly into your room while delivering added weight and authority to music, films and television.

Engineered for precision rather than excess, the RS1 is ideal for those who want to extend bass performance without overwhelming their space.

Whether paired with a Ruark all-in-one system or the popular MR1 bookshelf speakers, it adds scale and impact while maintaining clarity and balance.

FEATURES

• High-Excursion Long-Throw Driver: Delivers deeper, more controlled bass, adding punch and scale without distortion at higher volumes.

• Integrated Class D Amplifier: Provides efficient, responsive power for tight low-frequency performance with minimal heat output.

• Tuned Bass Reflex Cabinet: Enhances low-end extension while maintaining accuracy, helping music sound fuller and more engaging.

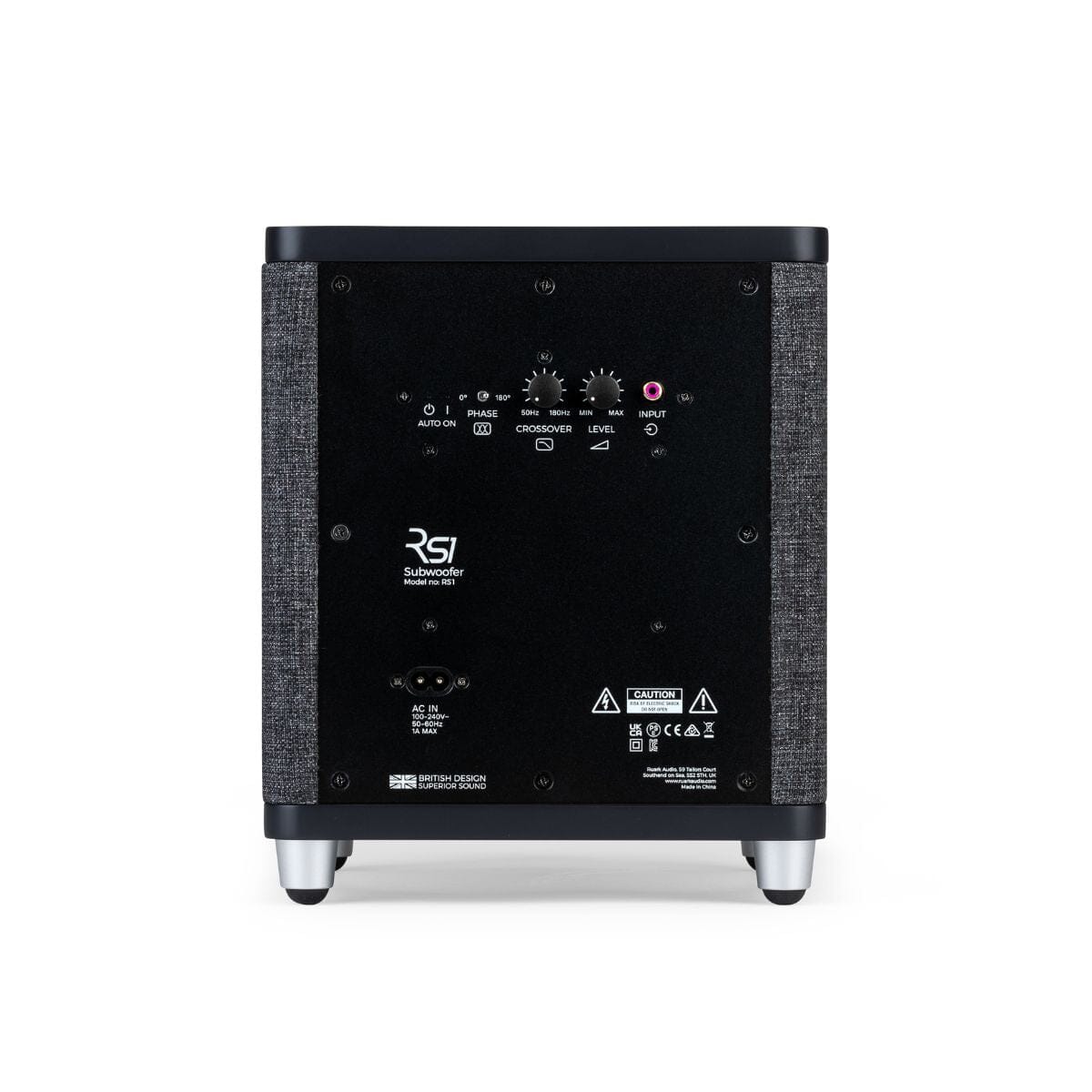

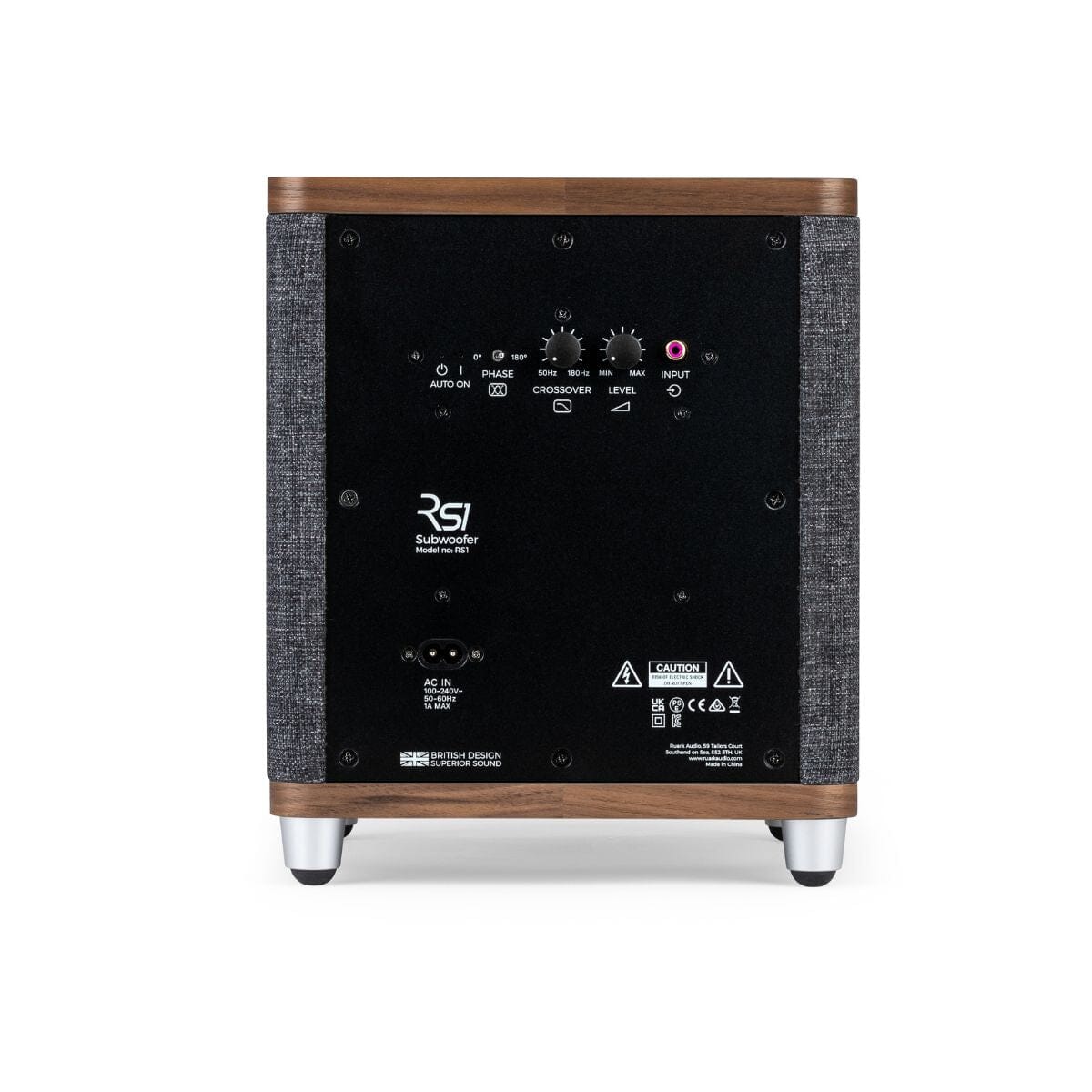

• Adjustable Crossover and Level Controls: Allows precise integration with your main speakers, ensuring bass blends naturally into your system.

• Automatic Signal Sensing: Powers on when audio is detected and returns to standby when not in use, improving convenience and efficiency.

• Compact, Furniture-Grade Design: Finished in premium materials to complement Ruark systems and modern interiors without dominating the room.

• Flexible Connectivity: Compatible with systems offering subwoofer outputs, making it easy to integrate into an existing setup.

The RS1 is a refined upgrade for listeners who want deeper bass performance while preserving the tonal balance and aesthetic of their Ruark system.

What You Get

• RS1 Subwoofer
• 2m AC power cable (IEC C7 figure of 8)
• 2m AC power cable
• 3m RCA subwoofer cable
• Quick Start Guide

Specifications

• Frequency Response (Typical In-Room): 35Hz - 180Hz

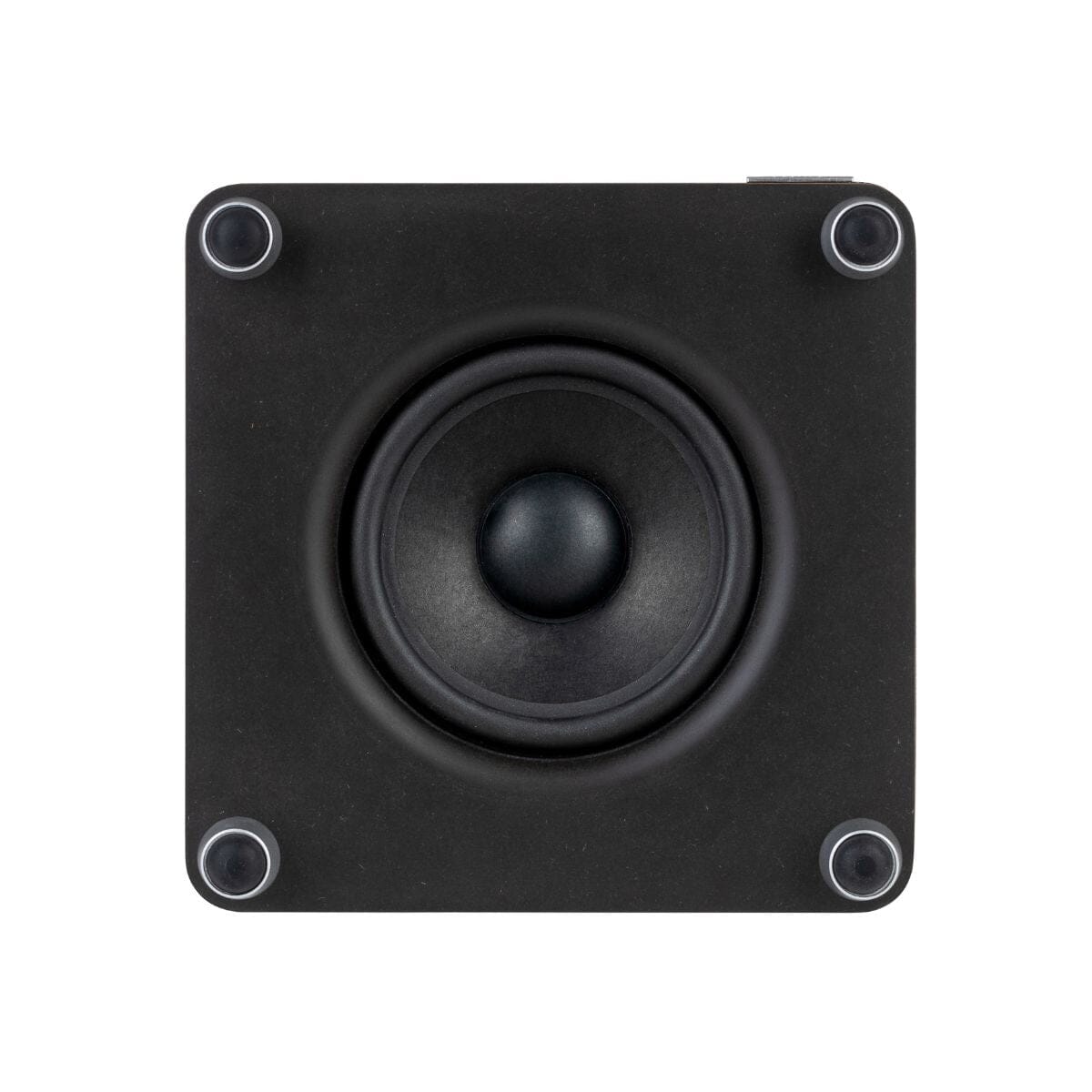

• Speaker Units: 165mm / 6.5"Ruark long-throw subwoofer, 165mm / 6.5"Ruark passive radiator
• Amplifier: 100W nominal Class D
• Enhancements: Auto standby and wake-up, 180 degree phase switch, Adjustable crossover (50–180Hz), Adjustable level control, Soft clip protection filter
• Cabinet Type: Tuned passive radiator
• Cabinet Volume: 9.5 litres
• Tuning Frequency: 45Hz
• Sub-Input: Mono RCA input (max 2.3 Vrms)

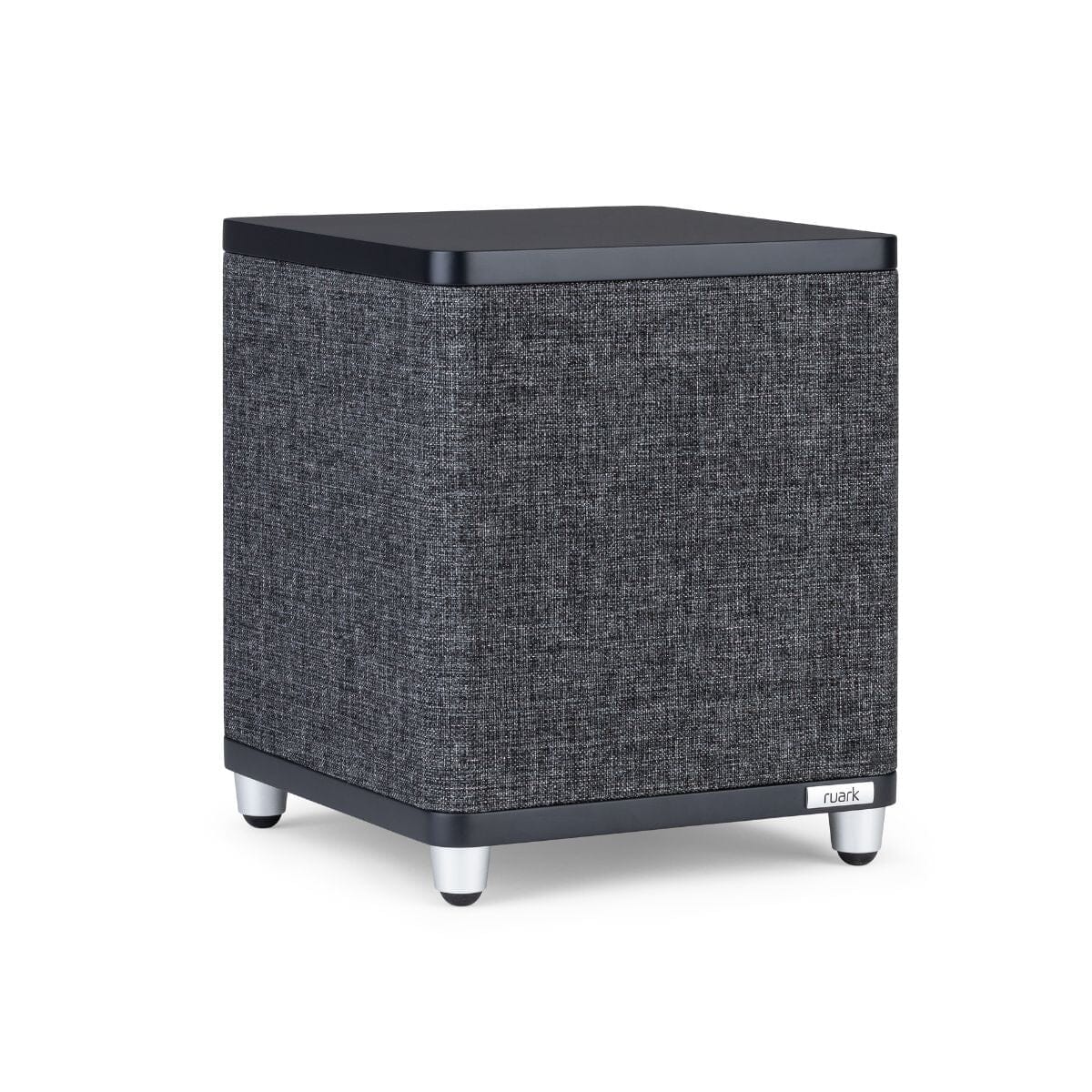

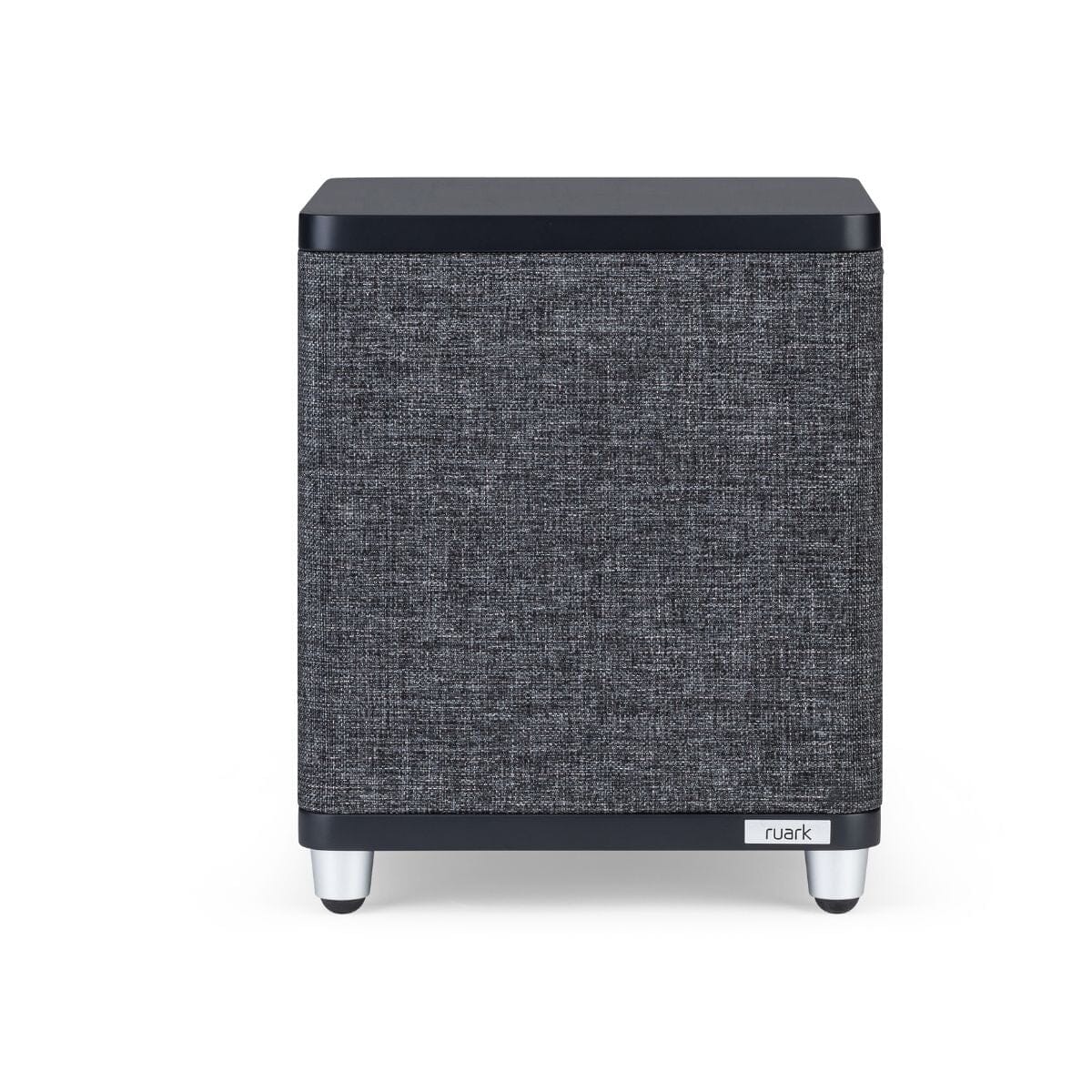

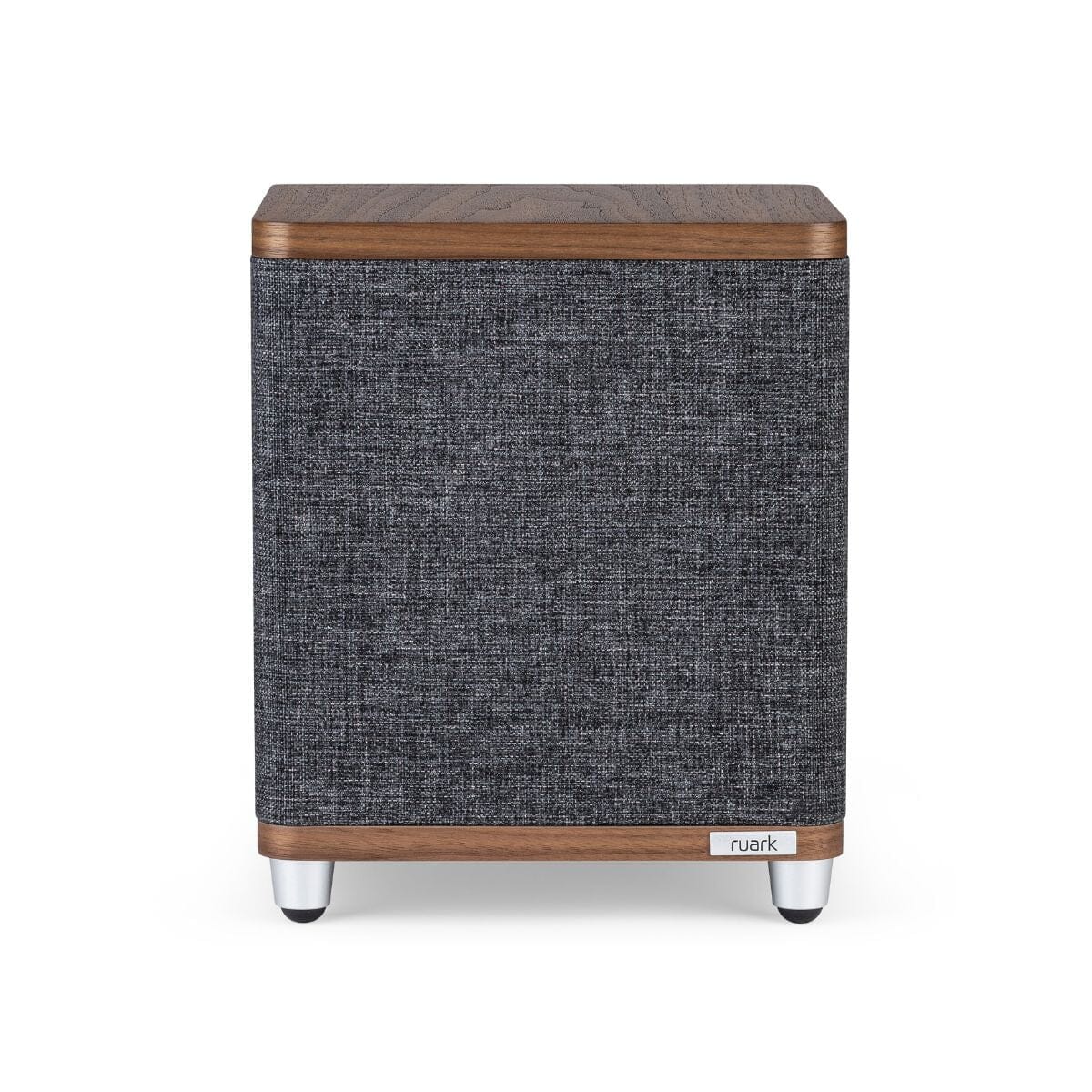

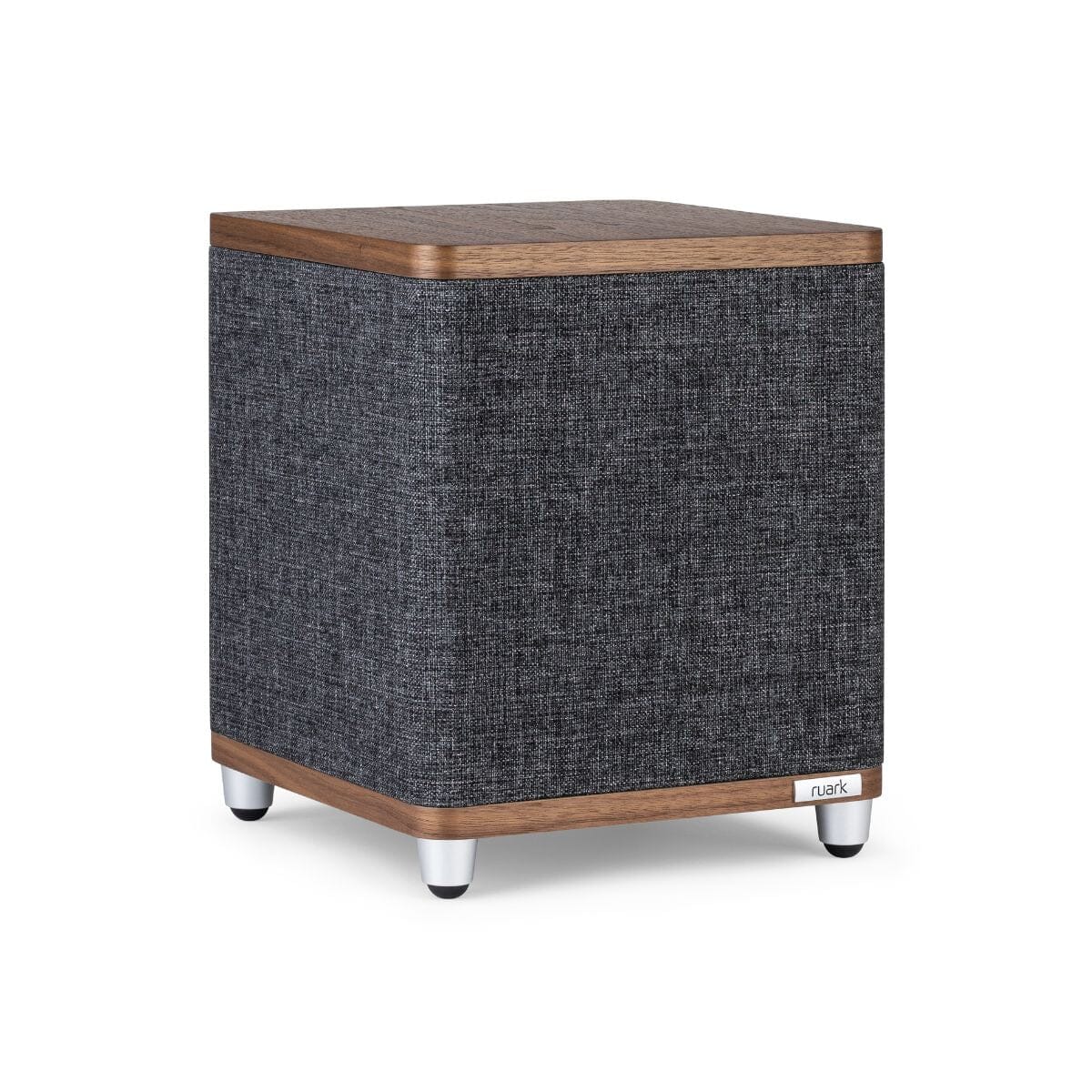

• Standard Finishes: Charcoal Lacquer panels with Dark Slate fabric grille, Rich Walnut panels with Dark Slate fabric grille
• Product Dimensions (Cabinet): H270 × W250 × D250mm
• Product Dimensions (Max – inc. feet, controls and cables etc.): H300 × W250 × D285mm
• Product Weight: 6.7kg
• Product Power Input: 90–240VAC 50–60Hz 2.5A
• Power Input Connector: IEC C8 cloverleaf AC socket
• Power Consumption: 0.5W standby, 7W typical
• Warranty: 3 Years
