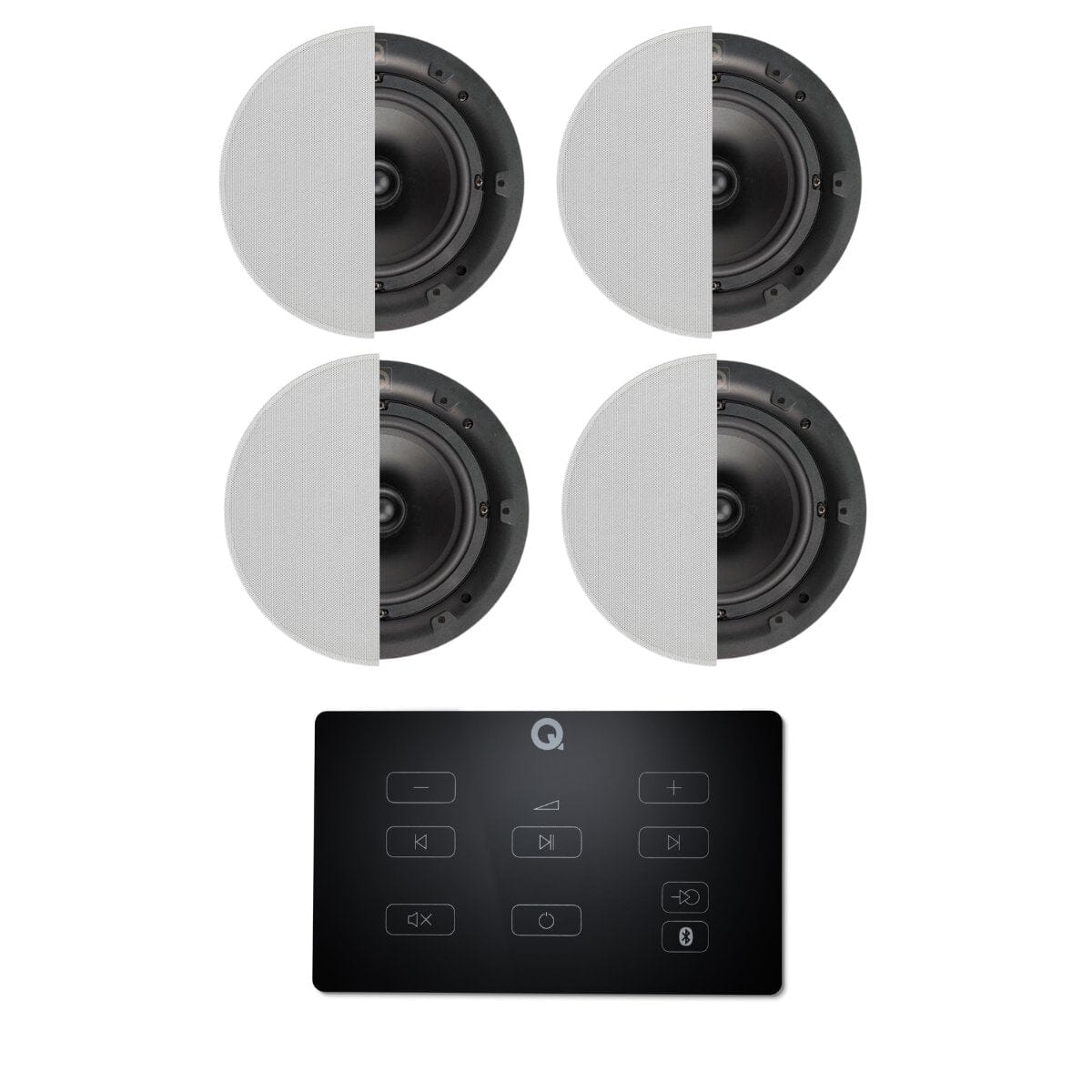

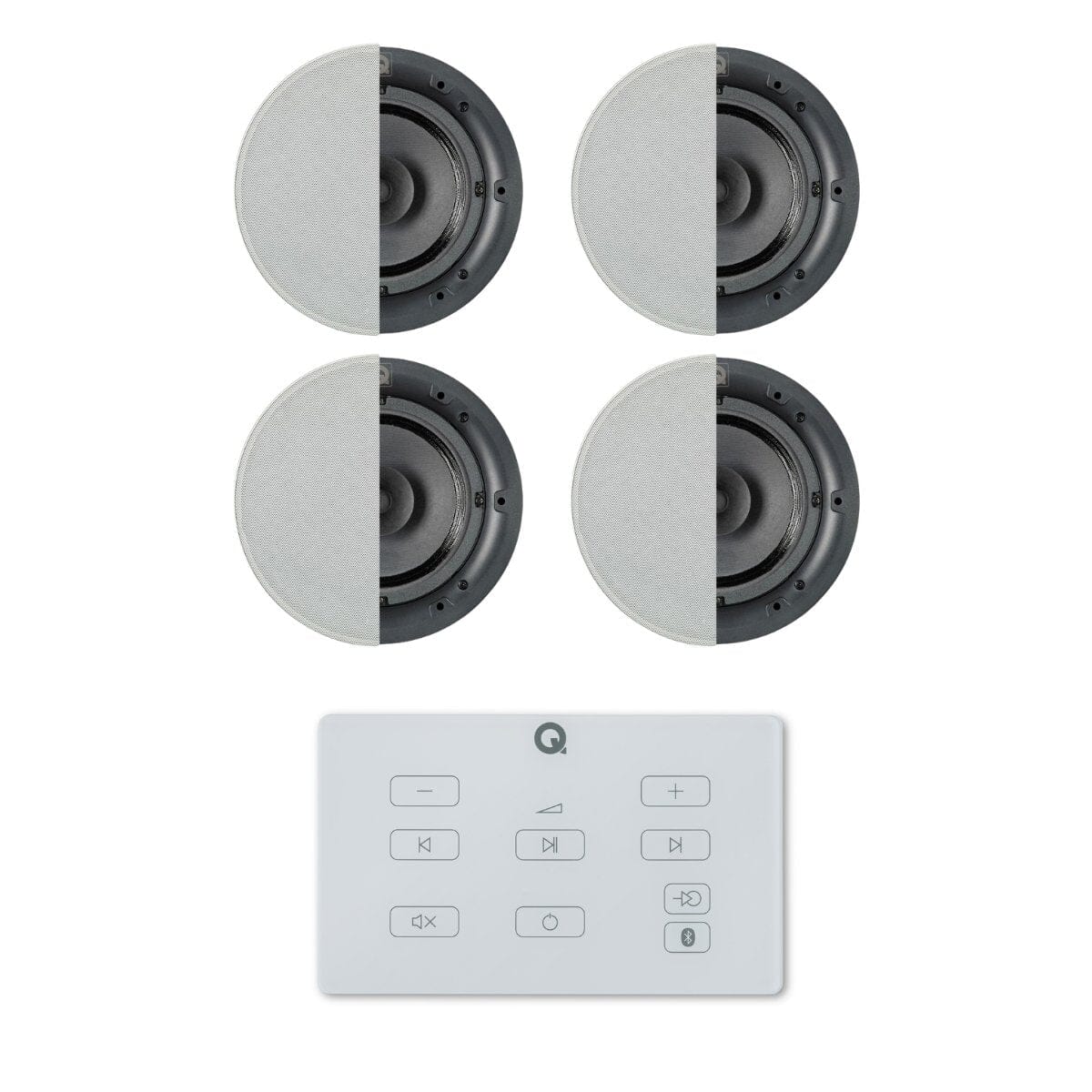

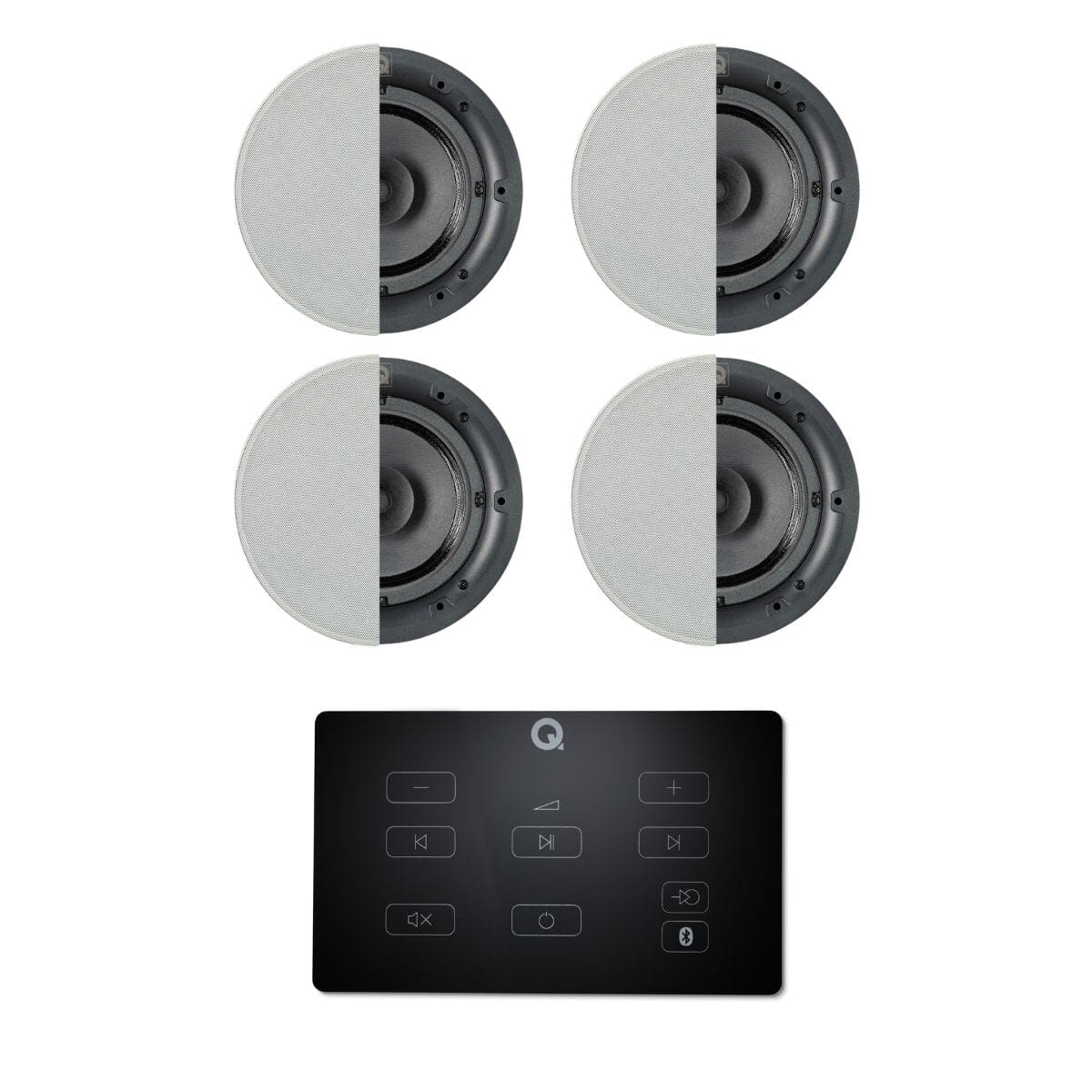

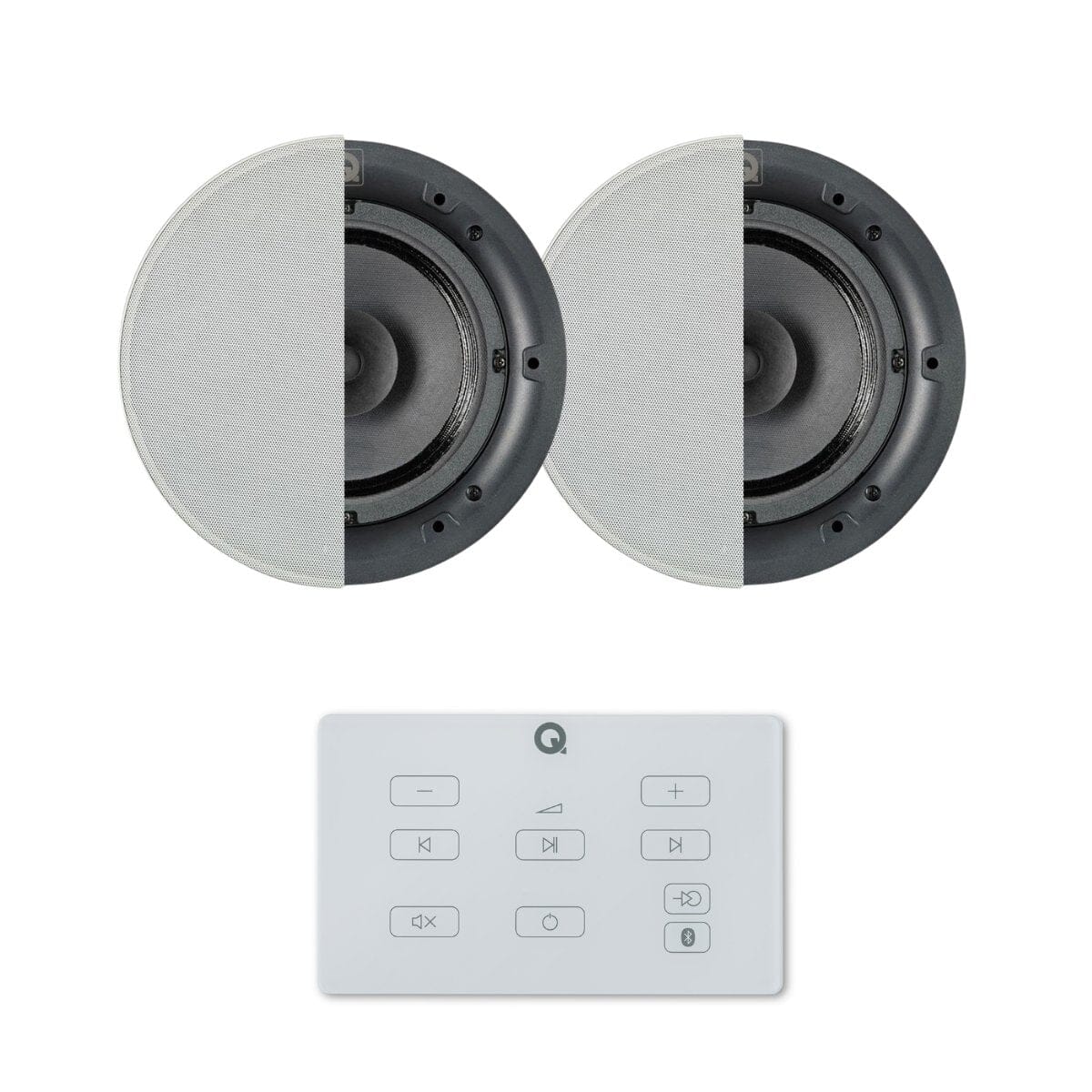

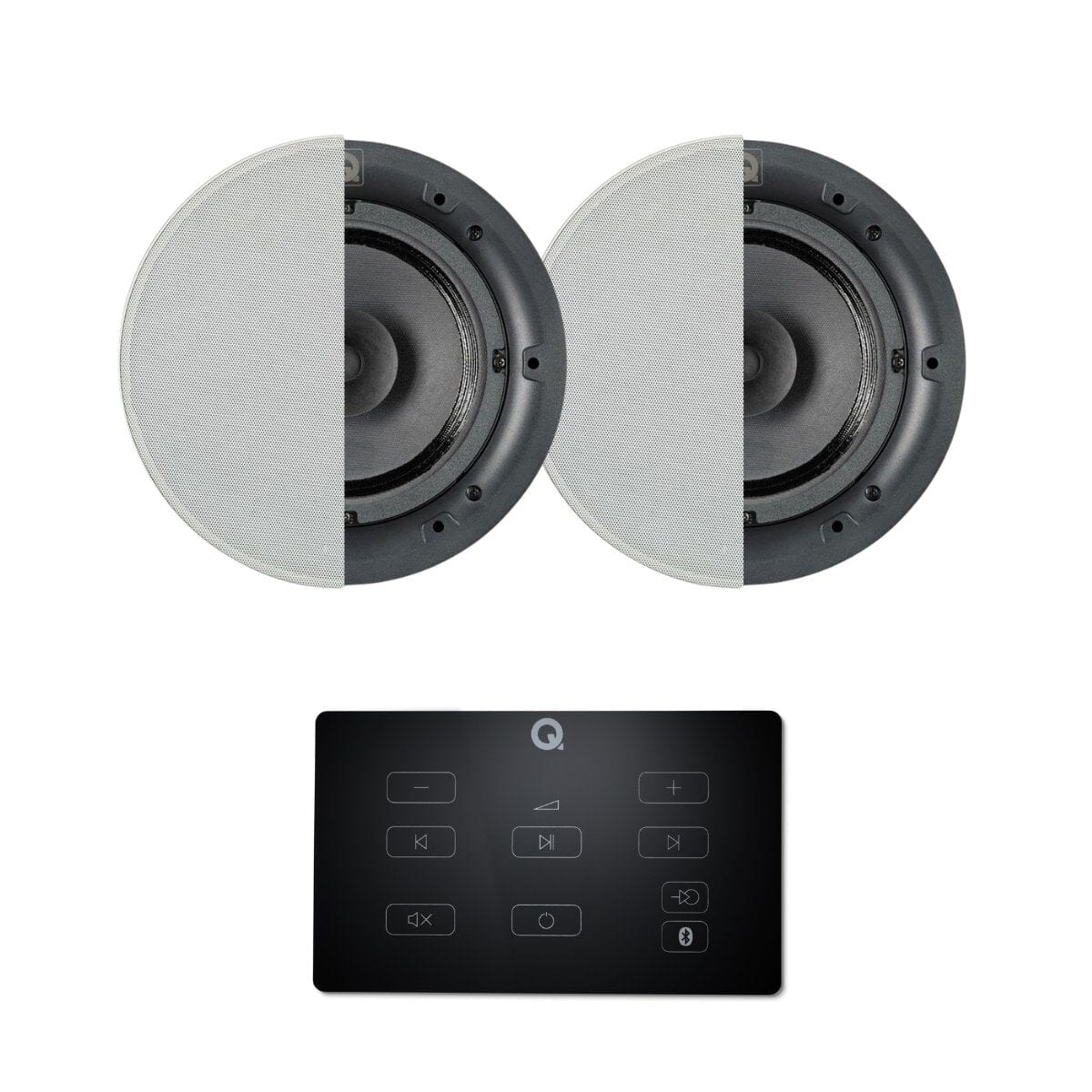

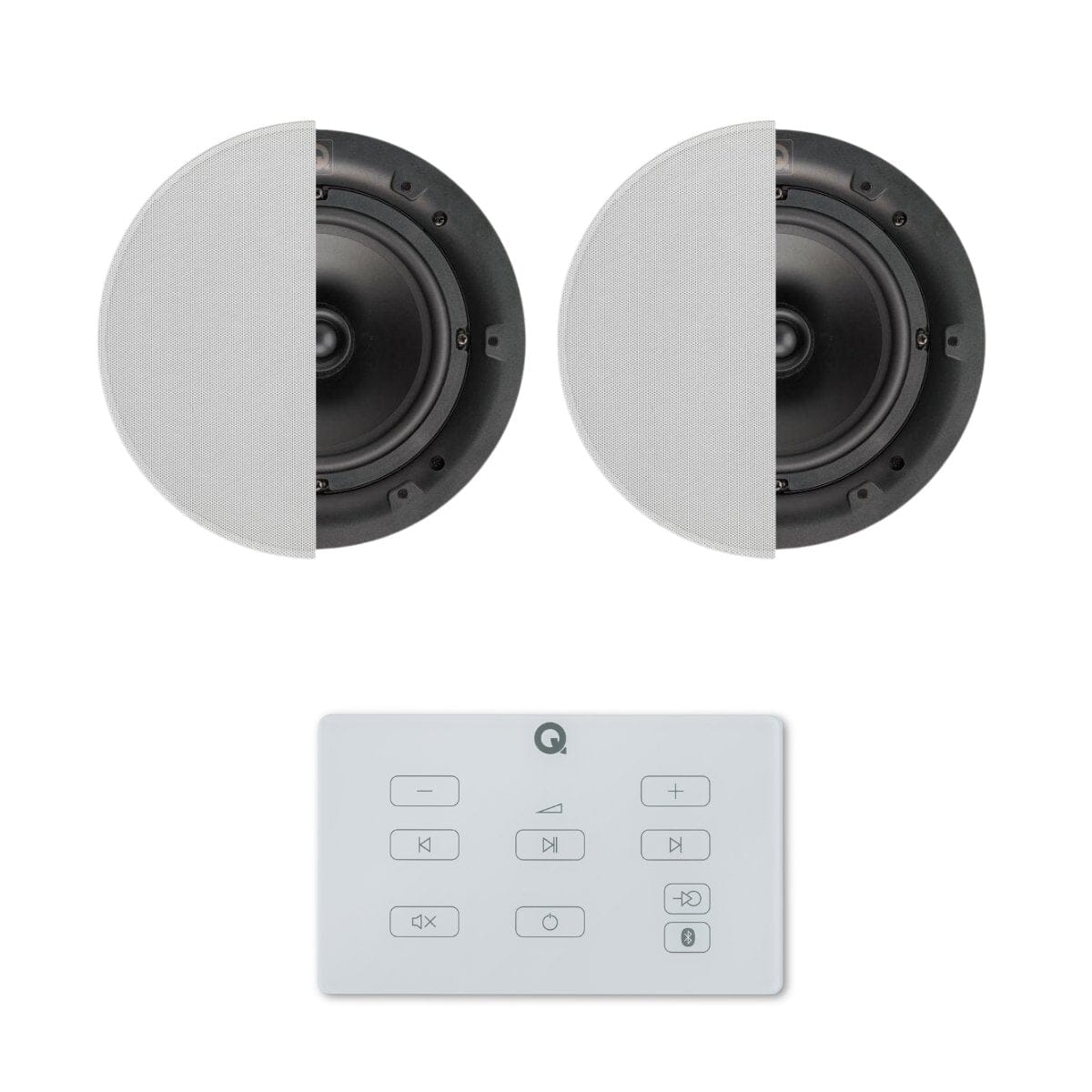

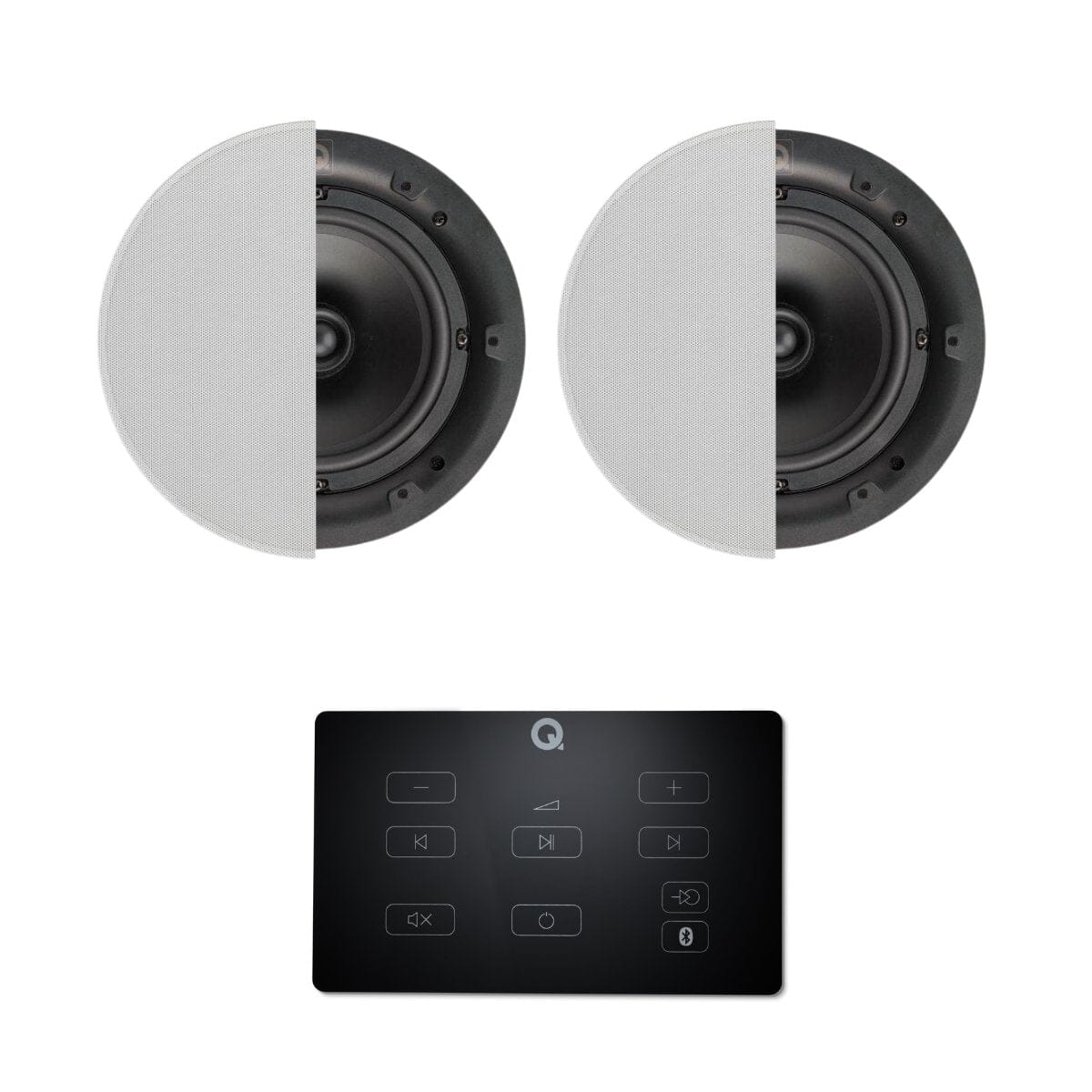

Q Acoustics E60 6.5" Bluetooth Ceiling Speaker System

The Q Acoustics E60 6.5" Bluetooth Ceiling Speaker System combines the discreet in-wall E60 amplifier with a pair of 6.5" Q Install in-ceiling speakers for a clean, modern audio solution.

Designed for bathrooms, kitchens, bedrooms and garden rooms, this system delivers powerful, room-filling sound without visible hi-fi equipment.

Stream music via Bluetooth or connect your TV using the optical input, all controlled from a sleek wall-mounted touch panel.

With 2 x 25 watts of Class D amplification and the ability to run in stereo or dual mono, the E60 ensures balanced and consistent coverage.

Choose between the Qi65CB standard speakers or upgrade to the Qi65C HD speakers for enhanced detail and refinement.

Both options provide a flush-fitting, low-profile finish that blends seamlessly into your ceiling.

FEATURES

• Built-In 2 x 25W Class D Amplifier: Delivers clean, controlled and dynamic sound with low distortion across a 20Hz–20kHz frequency response. Powerful enough to drive up to two pairs of speakers, it provides flexibility for single-room or wider coverage setups.
• Bluetooth 5.0 Streaming: Stream music wirelessly from smartphones, tablets and laptops using Bluetooth 5.0 with AVRCP control for play, pause and track skip. A simple and reliable way to enjoy everyday audio.
• IP54 Splash-Proof Wall Panel: Ideal for bathrooms and kitchens, the IP54-rated control panel is resistant to splashes and humidity. No additional sealing required for most installations.
• Stereo Or Dual Mono Mode: Switchable mono mode ensures even sound coverage in open-plan spaces or bedroom and bathroom combinations where consistent audio matters most.
• Analogue Line Output For Expansion: Add a subwoofer or external power amplifier using the fixed or variable 3.5mm output. Expand the system without starting again.
• Discreet Flush-Fit Design: Slim grilles sit close to the ceiling surface for a neat, architectural finish that suits modern interiors.

This system offers a simple and professional way to add Bluetooth and TV audio to any room, with the flexibility to choose the speaker performance level that suits your space and budget.

SPEAKER CHOICE

The Q Acoustics E120 is available with standard or high definition in ceiling speakers.

The standard speakers are good quality and offer a good sound, but the high definition speakers are a significant upgrade to the standard and if you heard them side by side there is a night and day difference.

• STANDARD SPEAKERSThe standard speakers included with the Q Acoustics E120 are the Q Acoustics Install QI65CB. At 6.5" these are capable background music ceiling speakers designed to offer good sound quality at a low cost.
• HIGH DEFINITION SPEAKERSIf you're looking for better sound quality then we'd suggest upgrading to the high definition QI65C speakers. These are a significant upgrade on the standard speakers, you'll notice a lot more low end bass and a lot more clarity.

You can clearly "hear" the difference just by looking at the comparison picture:

What You Get

AMPLIFER

• 1 x Amplifier Wall Panel
• 1 x Mounting Frame
• 1 x 5M DC Extension Cable
• 1 x Power Supply
• 2 x 7.5m Speaker Cables

SPEAKERS (ONE PAIR)

• 2 x Speakers
• 2 x Grilles
• 1 x Cut Out Template
• 1 x User Manual

SPEAKERS (TWO PAIRS)

• 4 x Speakers
• 4 x Grilles
• 2 x Cut Out Template
• 1 x User Manual
• 20m x 2 Core Speaker Cable

Specifications

AMPLIFIER

• Audio Sources: Wireless: Bluetooth (BT 5.0, A2DP)
• AUX: Optical TOSLINK, Resolution: 16bit 48kHz
• Speaker Outputs: Left&Right, Stereo or dual mono
• Analogue Line: 3.5mm stereo, Modes: Fixed or variable, Max level: 670mV
• Amplifier Type: Class D, Continuous power: 2 x 25W @ 6Ω, THD: 0.07% @ 1W, 0.2% @ rated power, SNR: >75dB @ rated power, Frequency response: 20Hz - 20kHz +/- 1dB
• Ratings: E60 wall panel: IP54
• Control: Touch sensitive buttons: x9, BT AVRCP v1.6 (play, pause, skip, track)
• Power Supply: Input: 100 - 240V AC 50/60Hz, Output: 22V DC 1.5A, Dimensions (HxWxD): 30mm x 50mm x 115mm
• Power Consumption: Typical: 10W, Standby: <2W
• Wall Panel: Net weight: 1.3kg, Dimensions (HxWxD): 91mm x 151mm x 33mm, Operating ambient temperature: Max. 40ºC
• Speaker Cable: Gauge: 19 AWG, Lengths: 2 x 7m
• DC Extension: Gauge: 16 AWG, Length: 5m, Connectors: 5.5mm x 2.5mm DC male, 5.5mm x 2.5mm DC female
• Warranty: 2 Years

SPEAKERS (STANDARD)

• Woofer Diameter: 6.5"
• Power Handling (Program): 50W
• Impedance (Nominal) Ohms: 8 Ohm
• Sensitivity dB SPL (2.83V, 1m): 93
• Response (Low Freq.) -3dB Hz: 77 - 20,000
• Maximum Rear Depth: 79mm
• Size (Round Grilles): 232mm Dia
• Cutout: 203mm
• Warranty: 5 Years

SPEAKERS (HIGH DEFINITION)

• Tweeter: Swivel
• Tweeter Diameter: 19mm
• Woofer Diameter: 6.5"
• Power Handling (Program): 15-60W
• Impedance (Nominal) Ohms: 8 Ohm
• Sensitivity dB SPL (2.83V, 1m): 89
• Response (Low Freq.) -3dB Hz: 75
• Maximum Rear Depth: 79mm
• Size (Round Grilles): 232mm Dia
• Cutout: 203mm
• Warranty: 5 Years
