KB Sound In Wall BT Bluetooth Amplifier (No Speakers)

For a simple to use, high quality way to listen to music around your home the KB Sound In Wall BT is the ideal choice.

The KB Sound In Wall BT is easy to install and even easier to operate.

It's ideal for listening to your favourite music in the kitchen or bathroom and it's equally at home in bedrooms, study and anywhere else you want to enjoy music in high quality, with a low cost.

The KB Sound In Wall BT can be paired with any device with Bluetooth capabilities (A2DP / AVRCP). Simply install the KB Sound In Wall BT unit into a 1G electrical box in your kitchen, bathroom, bedroom or anywhere else and stream your music from your phone, tablet or computer.

Perfect for your home and it's also an ideal solution for hotel rooms, hospitals, schools and any public place in the wall avoids theft.

• No clutter
• Extremely easy to use, simply turn it on and pair your phone to start streaming.
• Can be paired with any device with Bluetooth capabilities.
• Signal range is 10-12 meters.
• Connect a local 3.5mm audio device
• Unique bluetooth coding allows you to install multiple units around the home without any interference.

INSTALLATION

The KB Sound In Wall BT in wall bluetooth receiver amplifier simply installs in a deep 1G electrical back box, you then simply connect the two supplied speakers to the unit, connect the remote power supply and you can stream your music!

The bluetooth in wall receiver has a unique identification code so you can install multiple units in one area and stream your phone independently to each unit.

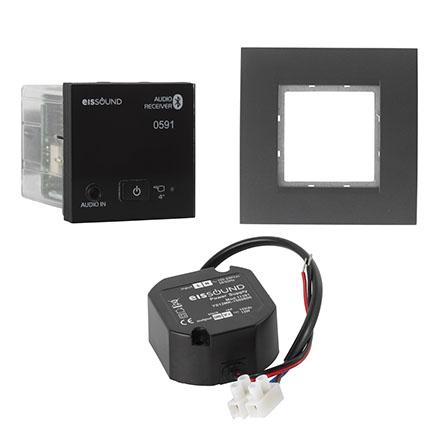

What You Get

• 1 x Amplifier (White / Black)
• 1 x Plastic Surround (White / Black)
• 1 x Back Plate
• 1 x Power Supply
• 1 x User Manual

Specifications

AMPLIFIER MODULE:

• Measurements - Exterior: 45 x 45 x 42mm - (W x H x D)
• Measurements - Cavity: 45 x 45 x 36mm (W x H x D)
• Measurements - Face Cover: 45 x 45mm (W x H)
• Voltage: 15 - 16Vdc
• Consumption - Bluetooth Operation: 22 - 111 mA
• Consumption - 3.5mm Jack Operation: 22 - 99mA
• Input Signal - Bluetooth Operation: 100 - 550 mVrms
• Input Signal - 3.5mm Jack Operation: 7 - 60 Kohms
• Output Signal: 2.5 Wrms - 8 Ohms
• Line Output Signal: 1.82 Wrms (Terminals 65,66,4), 50 ohm (Terminals 65,66,4 Output Impedance)
• Amplifier Trigger Signal: 14Vdc (Terminals 62,4), 1 Kohms (terminals 62,4 Output Impedance)
• Left / Right Channel Separation: 58dB
• Passband: 45 - 20.000 Hz
• Distortion: 0.1%
• SNR: 84dB
• Bluetooth ID: 0000 - 9999
• Bluetooth Specifications: Class 2 BT2.1 + EDR, A2DP 1.2, AVRCP 1.4
• Wireless Transceiver: 2.5 Ghz
• RF Power Transmitter: 7 dBm
• Range: 10m

POWER SUPPLY:

• Measurements: 49 x 47 x 24mm (w x h x d)
• Voltage: 93 - 264 Vac
• Frequency: 47 - 63 Hz
• Power: 12W
• Output Voltage: 15 Vdc
• Output Current: 800mA
• Consumption Demand: 12W
• Warranty: 2 Years
