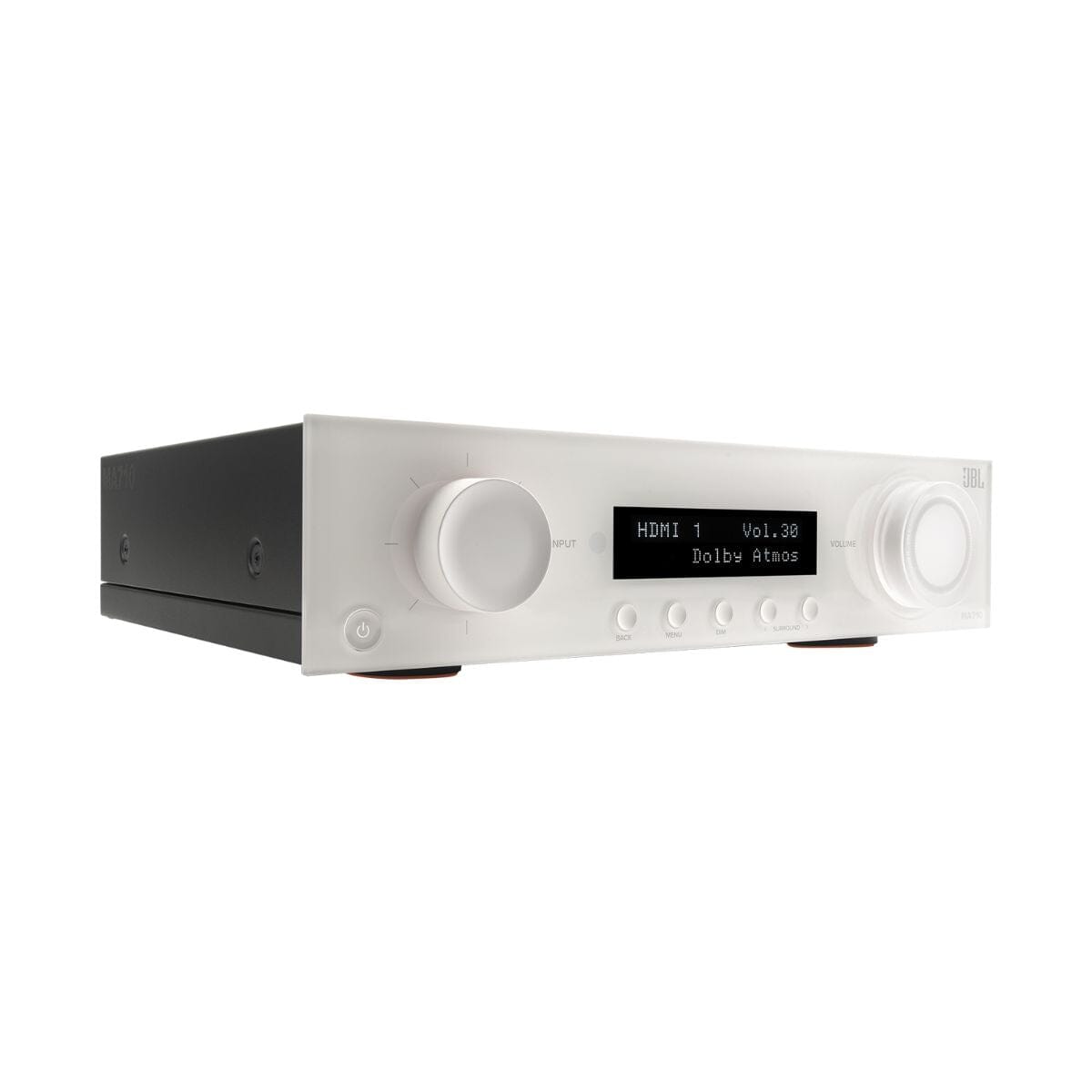

JBL MA710 7.2 Channel 8K AV Receiver

The JBL MA710 is an AV Receiver that delivers stunning realism with the latest 8K HDMI specifications and native 7-channel decoding of immersive audio from Dolby Atmos and DTS:X for the ultimate home cinema experience. Seamlessly integrate your smart TV or projector with 6 HDMI inputs and 1 output, plus eARC. It is designed with a passion for music and movies, bringing both to life with true high fidelity. The MA710 features seven channels of low noise Class D amplification for real world power to all channels. In addition to the onboard Moving Magnet phono input for connecting a turntable, additional music content can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, and Bluetooth AptX Adaptive.Audio sources can be played to a second Zone, making audio available in a secondary location. In addition to physical controls, the MA710 allows for IP control for third party control system integration.

• 7.2-channel AV receiver that delivers stunning realism with the latest 8K video for the ultimate home cinema experience.
• Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 6 HDMI inputs and 1 output, plus eARC.
• Dolby Atmos and DTS:X decoding, supports up to 7.1 or 5.1.2 channel configurations.
• Stream music wirelessly via Bluetooth and network streaming (Apple Airplay 2, Google Chromecast).
• Moving magnet phono input for connecting a turntable.
• On-screen display for easy system setup and operation (via HDMI).
• Seven channels of low noise Class D amplification for real world power to allchannels.
• EZ Set EQ provides easy-to-use roomequalization for optimized sound quality.

What You Get

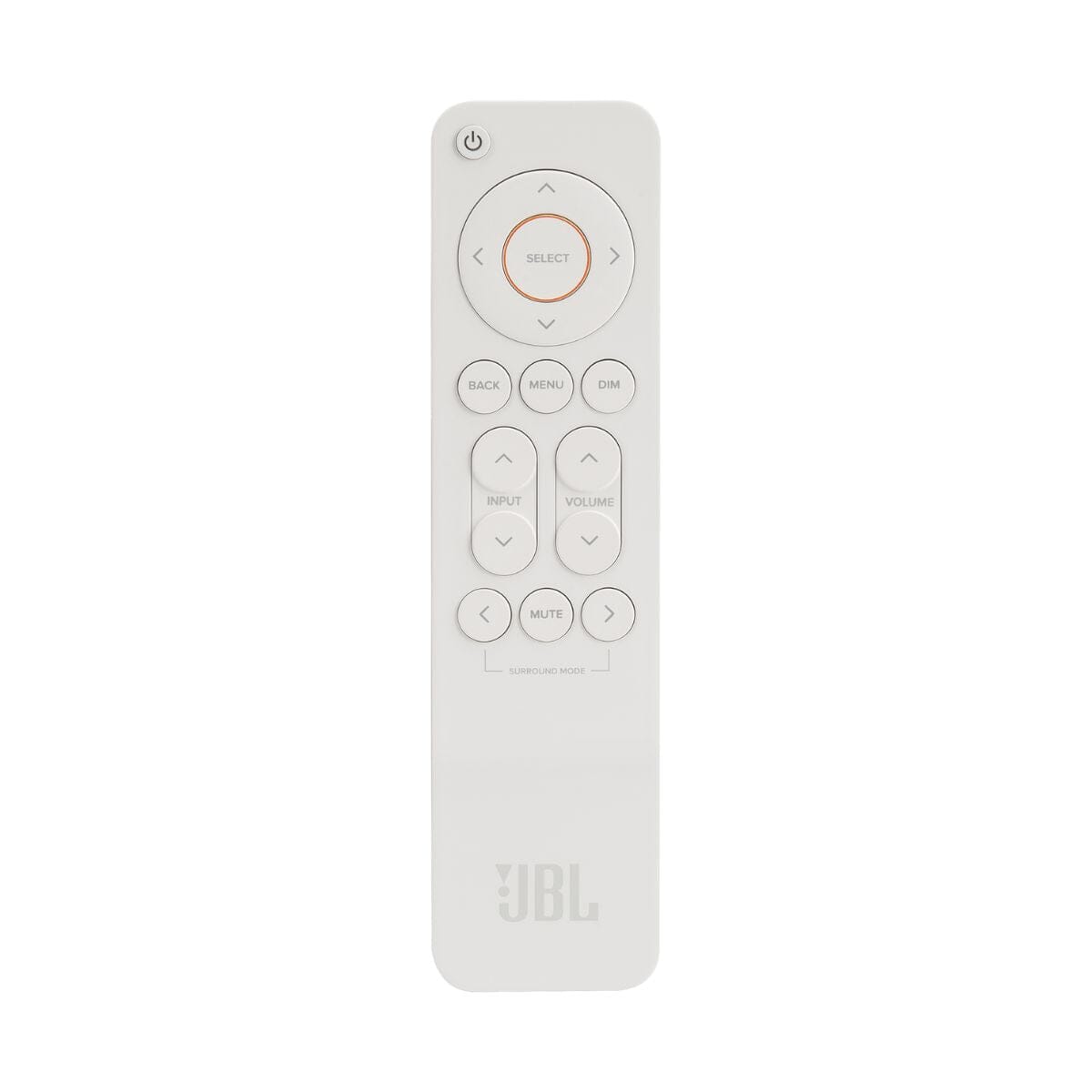

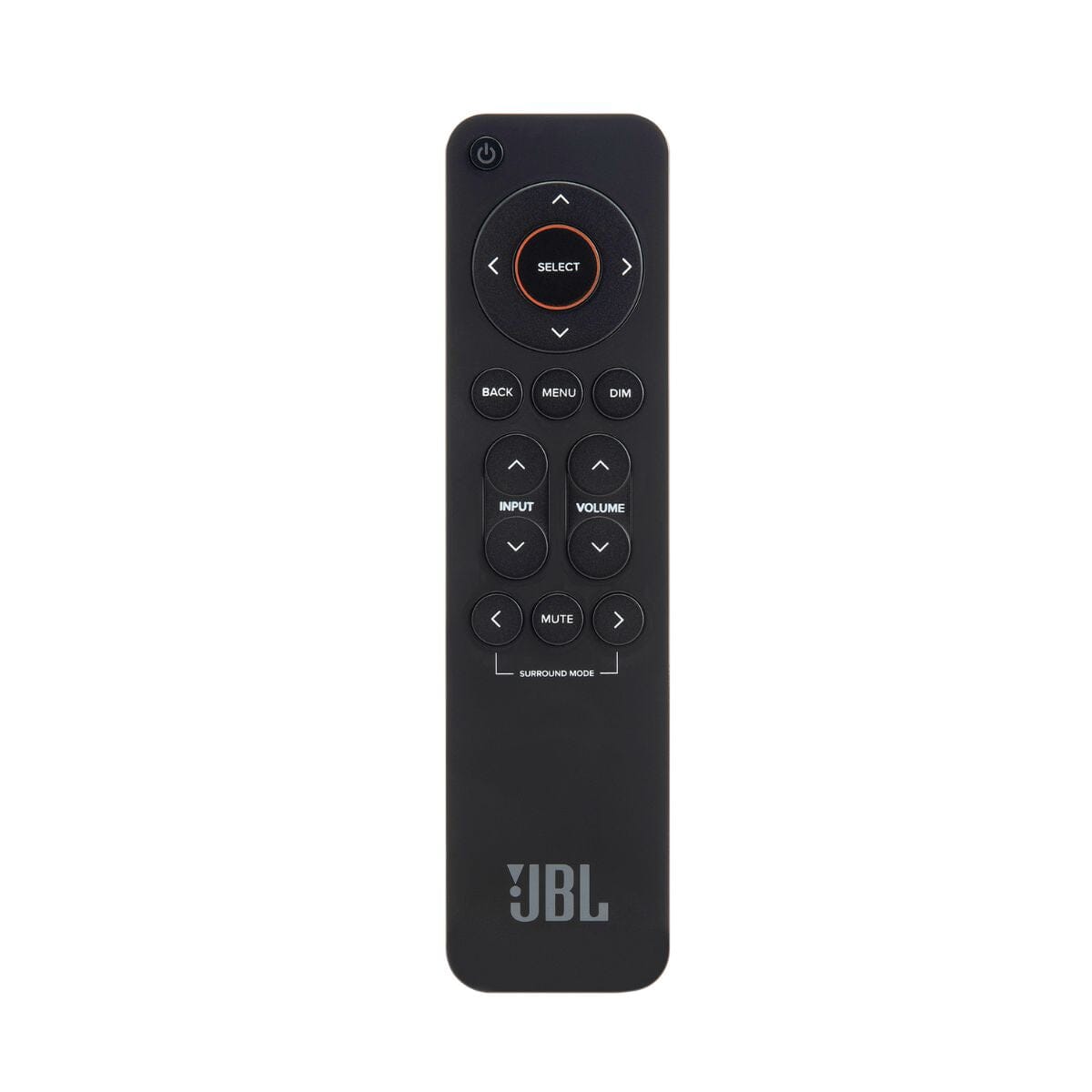

• 1 x IR remote
• 2 x AAA Batteries
• 1 x Bluetooth Antenna
• 2 x Wi-Fi Antenna
• 1 x power cord

Specifications

Amplifier Section

• Channels: 7.2
• Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max): 110 W RMS
• Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max): 160 W RMS

Video Features

• HDMI eARC: Yes
• HDMI Audio Return Channel: Yes
• 8K HDMI Input Connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz): 3
• HDMI 2.1 Enhanced Gaming Features: Gaming-VRR, ALLM, QFT, HFR (4K@120Hz)
• HDR 10+, Dolby Vision: Yes, Yes

Audio Features

• File Format: MP3 / MPEG-4 AAC: up to 48 kHz / 320kbps WMA: up to 48 kHz / 192kbps ALAC: up to 192 kHz / 24-bit FLAC: up to 192 kHz / 24-bit PCM / WAV / AIFF: up to192 kHz / 24-bit
• Pure Direct: Yes
• EZ/Set EQ: Yes
• Front Channel bi-amp: Yes
• DA Converter: 192kHz/24-bit

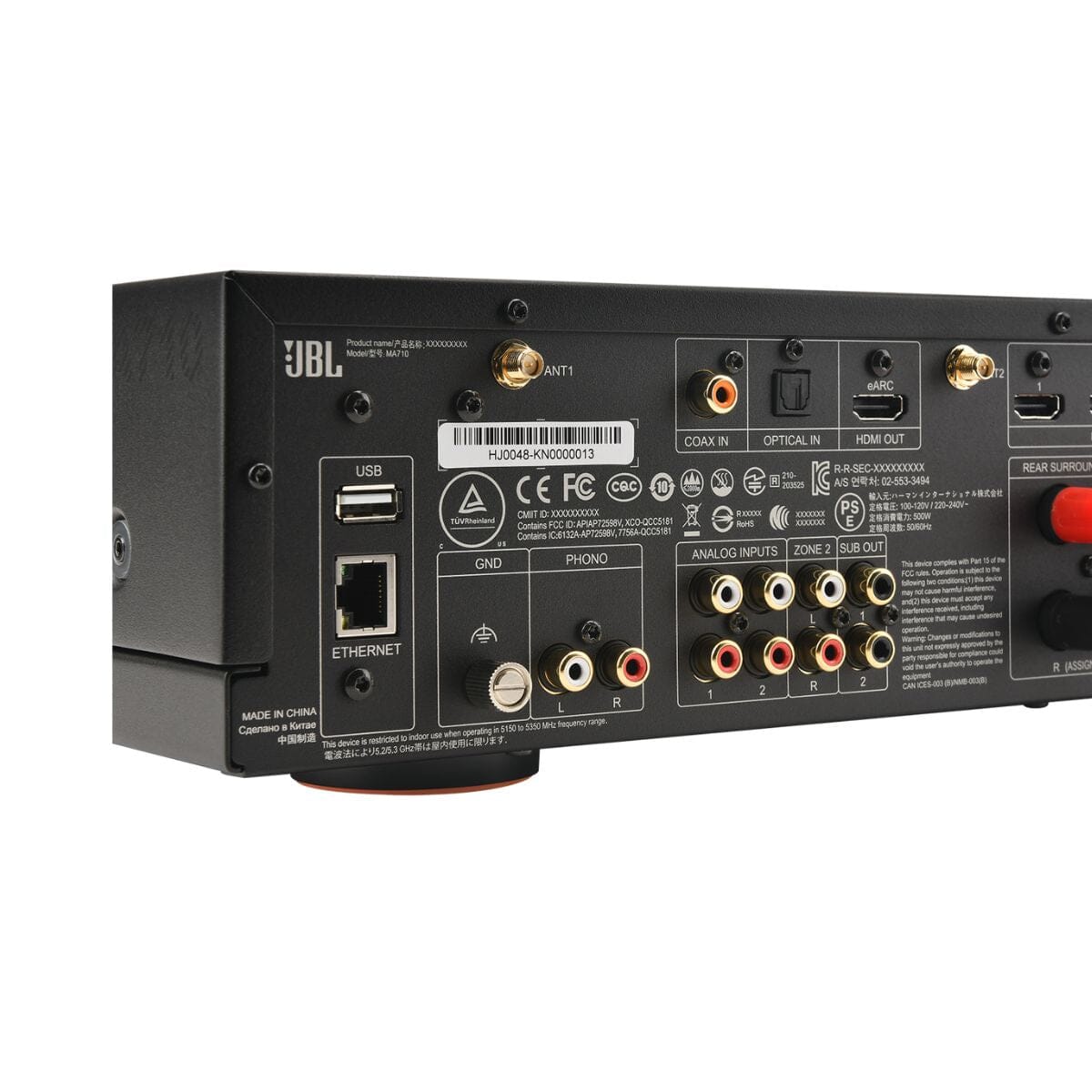

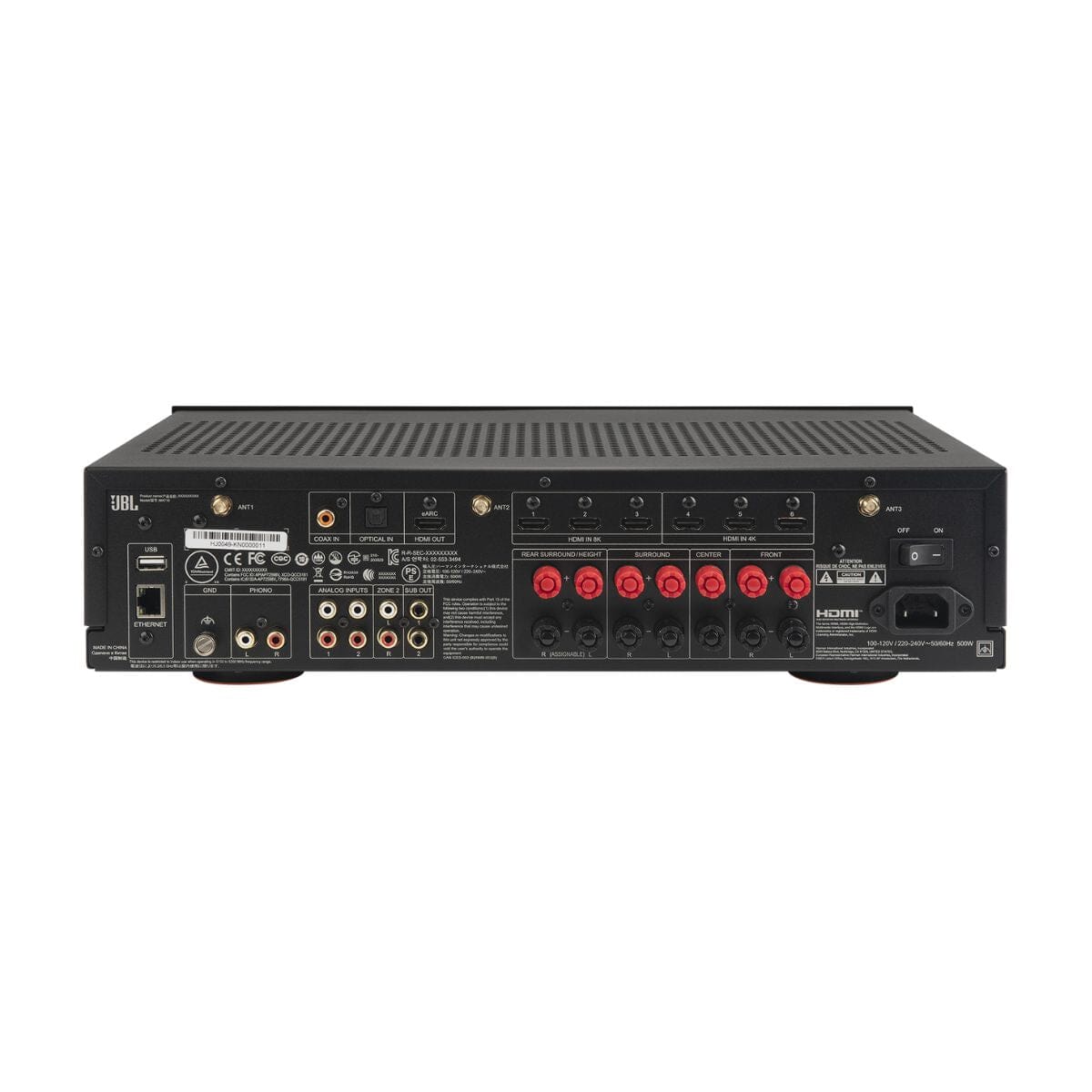

Connectivity

• HDMI Input/Output: 6 / 1
• Wi-Fi: Yes (2.4 / 5GHz)
• Bluetooth Receive: Yes (v5.3, Low Energy, APTX HD, APTX Adaptive)
• Digital Audio Input: 1 Coax, 1 Optical
• Stereo Analog Input: 2 single-ended RCA
• Pre-Out (single ended RCA): Stereo Zone 2, Subwoofer 1, Subwoofer 2

General

• Mains Voltage: 110 – 240V, 50–60Hz
• Max. Power Consumption: 500W
• Standby Power Consumption: <0.5W
• Dimensions incl. Feet and Speaker Terminals (H x W x D): 4.3” x 17.0” x 13.7” (109.9mm x 432.0mm x 347.6mm)
• Weight: 6.3kg
• Warranty: 1 Year
